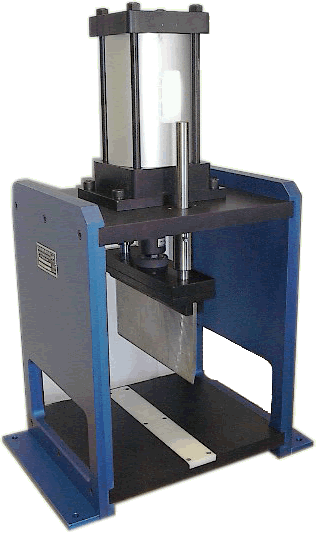

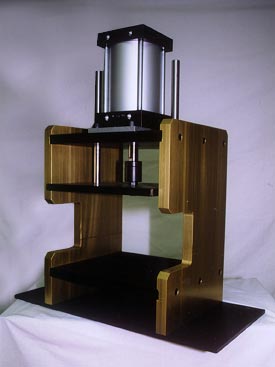

The Versatile Series Air Press
is a flexible press for assembly of small parts. The module design
allows you to specify cylinder bore, stroke length, open height, guided
ram, upper and lower platen sizes to satisfy your application. The
Versatile Air Presses can perform a variety of cutting, piercing,
notching, trimming and vulcanizing operations of light metal, rubber and
plastic.
|
|
|
MODEL: VP-5
Force @ 60 psi: 1176 lbs.
Force @ 80 psi: 1568 lbs.
Force @ 100 psi: 1960 lbs.
MODEL: VP-6
Force @ 60 psi: 1695 lbs.
Force @ 80 psi: 2260 lbs.
Force @ 100 psi: 2825 lbs.
Consult Factory for Custom Sizes |
 |
|
