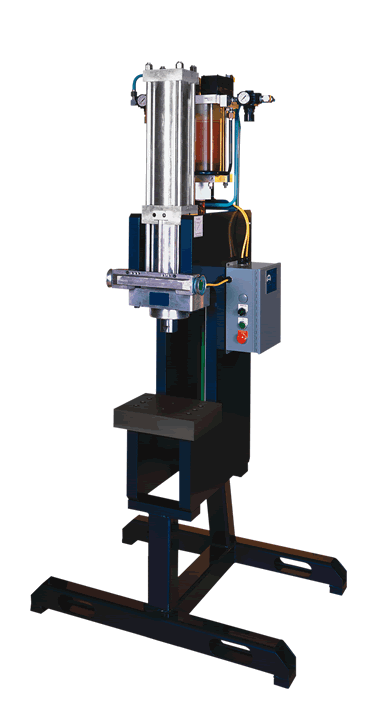

The HydroPneumatic Series Presses are
ready to accept your tooling for Piercing, Coining, Stamping, Bending,
Marking, Forming, Riveting, Crimping, Clamping, Trimming, Staking, Tube
Flaring and Assembly applications.
|
|
|
Model |
Max. Total
Stroke |
Max. Work
Stroke |
Open
Height |
Throat Depth |
Force @
100 PSI |
|
HP400 |
6.0 " |
0.5 " |
10.0 " |
4.0 " |
4 Tons |
|
HP800 |
6.0 " |
0.5 " |
10.0 " |
4.0 " |
8 Tons |
|
HP1500 |
6.0 " |
0.5 " |
12.0 " |
5.0 " |
15 Tons |
|
HP3200 |
6.0 " |
0.5 " |
12.0 " |
7.0 " |
32 Tons |
|
HP7000 |
8.0 " |
0.5 " |
18.0 " |
8.0 " |
70 Tons |
